How Does a Plate Heat Exchanger Work?
Abstract
Plate heat exchangers (PHEs) are composed of a series of corrugated plates and gasketed channels for the transfer of heat between two fluids that allows for the fluids to flow counter-current, thus achieving a high thermal efficiency. Heat Pump Heat Exchangers: Compact, Versatile Design for Heating, Cooling, and Heat Recovery Solid oxide cells offer advantages of efficiency, simple maintenance, and scalability but are restrained by pressures, temperature, and fouling constraints. PHEs are a sustainable solution for industrial heat transfer applications because regular maintenance ensures optimal performance.
Introduction to Heat Transfer Theory and Examples of Plate Heat Exchangers
Adjoining regions enable heat transfer, the basis of thermodynamics. Heat energy transfers from a high temperature region to a low temperature region until thermal equilibrium is reached. And this principle is the basis of heat exchangers, devices that transfer heat between two or more fluids without mixing them.
Principles of Heat Transfer
Direction of Heat Flow
Heat is always transferred from a higher medium to a lower medium. This is a natural process since thermal energy flows from high-temperature regions to low- temperature regions, in an effort to reach thermal equilibrium. This rule underlies all modes of heat transfer, which are conduction, convection, and radiation.
Temperature Difference
For heat to be transferred, there needs to be a temperature difference between two mediums. Thermal energy is not a motive force to move without a temperature gradient. A most critical factor in heat exchange systems, the heat transfer rate is directly proportional to the temperature difference, so the greater the temperature difference, the faster the heat transfer rate occurs.
Conservation of Energy
The heat lost by the hot medium is equal to the heat gained by the cold medium assuming no energy is lost to the environment. A principle, based on the energy conservation law, which maintains that, the total energy of the system always remains constant. It plays an important role in determining the rate of heat transfer and sizing thermal systems such as heat exchangers.

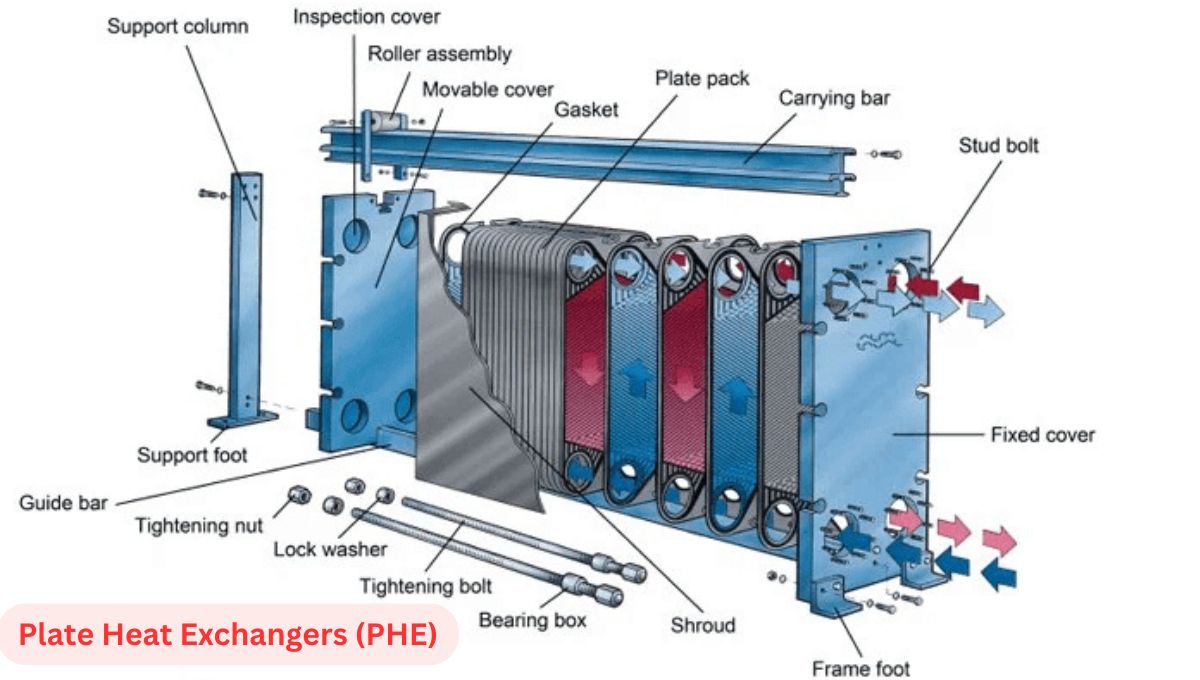

Plate Heat Exchangers (PHE)
A plate heat exchanger (PHE) is a heat transfer device that utilizes metal plates to transfer heat between two fluids. It is efficient and compact, ideal for a wide range of applications such as heating, cooling, heat recovery, condensation, and evaporation.
Analysis of Systems with a Plate Heat Exchanger
- Plate Structure: The plate heat exchanger (PHE) consists of a series of thin, corrugated plates that are stacked together. These plates are held in place by a fixed plate and a movable pressure plate, resulting in a complete unit.
- Trace 1: Gasket, formed by gaskets, with two channels for hot and cold fluid on each plate. The gaskets in them prevent the fluids from mixing, directing them into separate channels.
- Counter-Current Flow: The fluid often moves in a counter-current formation to each other, which is optimized to increase the temperature difference between the two fluids, aiding in the efficiency of heat transfer.
- They create turbulence: The plates are factored in a way that they create burrs in the way of the fluid flow in the channels. These fluctuations, in turn, enhance the heat transfer coefficient and thereby the efficiency of the heat exchanger.
Types of Plate Heat Exchangers

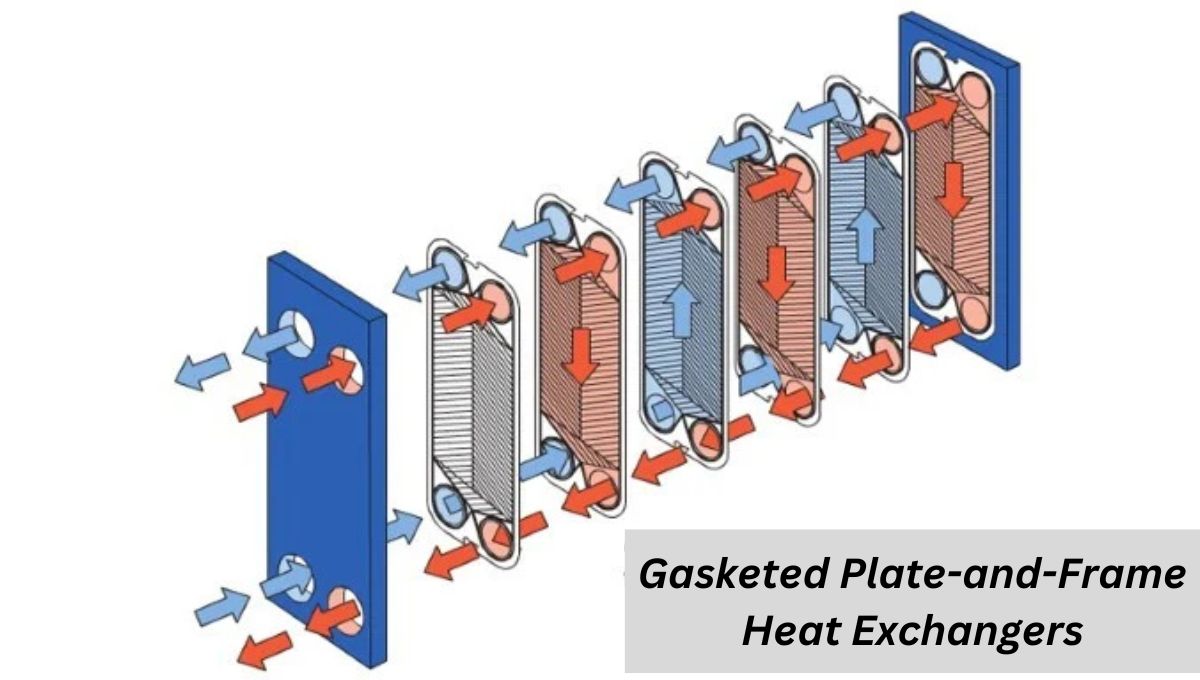

1. Gasketed plate and frame heat exchangers
These are the most common kind, with gaskets sealing plates held together in a frame. HVAC units are built for simple disassembly, cleaning, and maintenance, allowing them to take on a range of applications.
.
2) O-Plain Tube & Semi-Welded Plate Heat Exchangers
They consist of welded plates as well as gasketed plates, which are more suited for flexibility. They are suitable for applications that demand moderate pressure and temperature resistance.
3) Welded Plate-and-Block heat exchangers
These heat exchangers are fully welded for increased durability and are designed for high-pressure, high-temperature applications.
4) Plate-and-Shell Heat Exchangers, Welded
In hydrocarbons, these are used extensively, especially in the Oil and Gas Industry. These are generally purpose-built for high-pressure applications and have very sturdy constructions to handle extreme operating conditions.
5) Welded Spiral Heat Exchangers
These are used in applications with highly viscous fluids or suspended solids. Theirs are spiral in the unique design, which reduces fouling and enables effective heat exchange under adverse conditions.
Benefits of Plate Heat Exchangers
Excellent heat transfer efficiency: The plates are corrugated and have a counter-current flow, resulting in a high heat transfer coefficient.
- Small in Size: Compared to shell-and-tube heat exchangers, PHEs have a smaller size.
- Maintenance: PHEs with gaskets are designed to be simply disassembled for cleaning and servicing by engineers.
- Adjustability: A PHE typically enables users to increase or decrease its capacity simply by adding or removing plates.
- Building Resource Efficiency: PHEs reduce energy usage, which is particularly relevant in sustainable development.
Drawbacks of Plate Heat Exchangers
- Pressure Limits: Due to the very nature of the PHE, they are typically unsuitable for the plate heat exchanger in high-pressure applications (maximum limit around 1.5 MPa).
- Temperature Limitations: The operating temperature is constrained by the gasket material’s temperature resistance.
- Fouling: If the fluid consists of suspended solids, the small flow paths are susceptible to fouling.
- Not Applicable for Gas-to-Gas Heat Transfer: PHEs are not ideal for use in gas-to-gas heat exchange or steam condensation due to the design limitations.
- Flow Resistance: Similar to a shell-and-tube heat exchanger, the resistance to flow in a PHE is typically higher than in a shell-and-tube heat exchanger.
Maintenance and Troubleshooting Tags
Maintenance is important for a plate heat exchanger to work properly. Here are some common issues you may experience:
- Reduced Production: Caused by fouling, scaling, or gasket failure.
- Leakages: Leakages can happen both externally and internally due to either plate failure or gasket failure.
- Process Disturbances: Unexplained deviations from expected temperature profiles or operational requirements can indicate a problem.
- Higher Power Density: This means that fouling or other inefficiencies in the heat exchanger could occur.
Conclusion
Plate Heat Exchangers | Working, Types). These are a simple yet compact design, clean, and offer a high thermal efficiency, which is why several processes choose to use them. However, they have limitations, especially in high-pressure and high-temperature applications, and need periodic maintenance to keep performing at peak efficiency. Knowing heat transfer theory and plate heat exchanger construction contributes to an appropriate type of heat exchanger selection for a specific application and being able to identify and eliminate problems.
